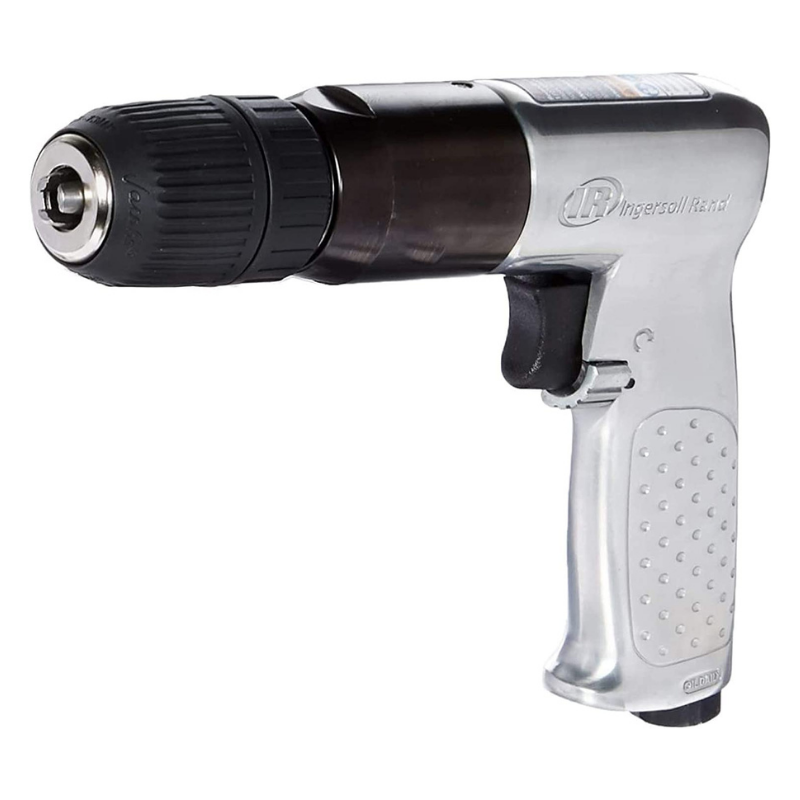

Ingersoll Rand 7803RAKC 1/2" Air Drill – 500 RPM
Ingersoll Rand 7803RAKC 1/2" Air Drill – 500 RPM
SKU:7803RAKC
- UK Stocked
- 30-Day Return
- 3-5 Day Shipping
Low stock
Couldn't load pickup availability
Key Features
- 1/2" (13 mm) keyless chuck for fast, tool-free bit changes
- 0.38 kW (0.5 HP) reversible pneumatic motor
- 500 RPM free speed for controlled drilling applications
- Quick-reverse lever for efficient directional changes
- Variable-speed trigger for precision hole starting
- Planetary gear train for consistent power transmission
- Double row ball bearings for extended service life
- Lightweight 1.5 kg construction reduces operator fatigue
- Designed for operation at standard 90 PSI workshop pressure
Product Overview
The Ingersoll Rand 7803RAKC is a professional 1/2" (13 mm) reversible air drill engineered for controlled drilling performance in industrial and workshop environments. Built with a durable aluminium housing and robust internal components, it delivers consistent results across fabrication, maintenance, and automotive applications.
Powered by a 0.38 kW (0.5 HP) motor, this model provides a lower-speed 500 RPM output profile, making it particularly suitable for precision operations such as reaming, honing, and accurate hole preparation in steel and aluminium.
The integrated quick-reverse lever supports efficient workflow during repetitive tasks, while the keyless chuck allows rapid bit changes without additional tools. A variable-speed trigger provides smooth start-up and improved control when working on finished or sensitive surfaces.
Performance & Operating Information
Operating at 90 PSI, the 7803RAKC is designed for integration into standard professional compressed air systems. Its controlled speed profile prioritises torque stability and accuracy over high-speed output, making it well suited to precision workshop environments.
The balanced 1.5 kg design supports extended use while reducing operator strain in daily industrial applications.
Technical Specifications
| Model | 7803RAKC |
| Chuck Size | 1/2" (13 mm) |
| Maximum Free Speed | 500 RPM |
| Rated Power | 0.5 HP (0.38 kW) |
| Operating Pressure | 90 PSI |
| Air Consumption | 765 l/min |
| Stall Torque | 1.2 Nm (10.6 in-lb) |
| Total Length | 221 mm |
| Height | 152 mm |
| Weight | 1.5 kg |
| Vibration Level | 2.5 m/s² |
| Sound Pressure | 83 dB |
Typical Applications
- Precision drilling in steel and aluminium
- Reaming and controlled hole preparation
- Automotive repair and body shop environments
- Fabrication and engineering workshops
- Industrial assembly operations
