Ingersoll Rand 7802RAKC 3/8" Air Drill – 2000 RPM
Ingersoll Rand 7802RAKC 3/8" Air Drill – 2000 RPM
SKU:7802RAKC
- UK Stocked
- 30-Day Return
- 3-5 Day Shipping
Low stock
Couldn't load pickup availability
Key Features
- 3/8" (10 mm) keyless chuck for fast, tool-free bit changes
- 0.38 kW (0.5 HP) reversible pneumatic motor
- 2000 RPM free speed for efficient drilling
- Quick-reverse lever for improved workflow efficiency
- Variable-speed trigger for precise hole starting
- Planetary gear train for consistent power delivery
- Double row ball bearings for extended service life
- Lightweight 1.32 kg construction reduces operator fatigue
- Designed for operation at standard 90 PSI workshop pressure
Product Overview

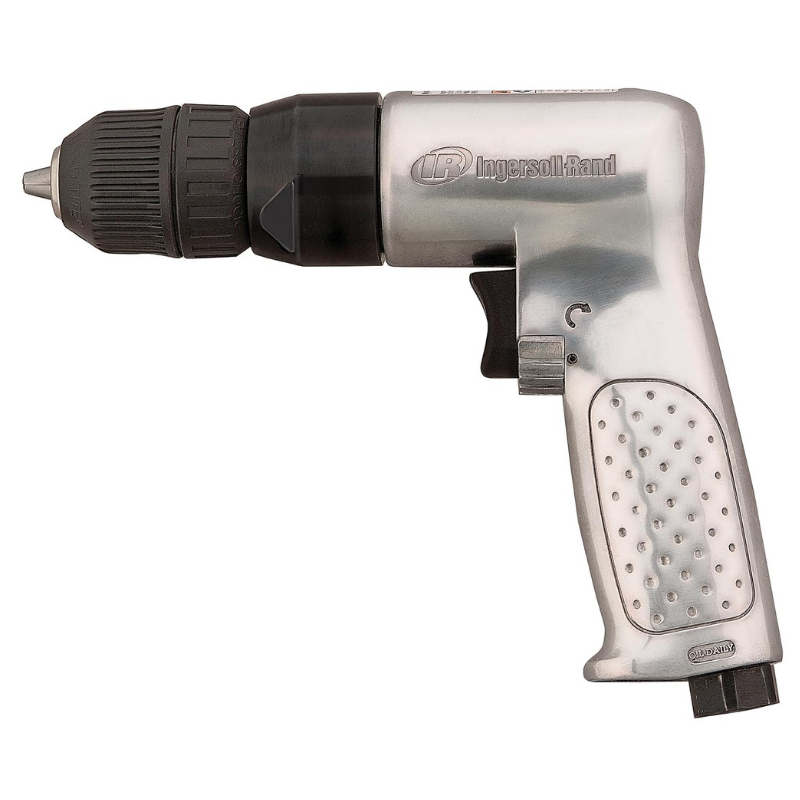

The Ingersoll Rand 7802RAKC is a professional 3/8" (10 mm) reversible air drill engineered for reliability in demanding industrial and automotive environments. Built with a durable aluminium housing and classic pistol grip configuration, it delivers controlled performance for fabrication, assembly, and maintenance applications.
The reversible motor provides smooth, consistent power, while the quick-reverse lever allows rapid directional changes during repetitive tasks. A variable-speed trigger enables accurate hole starting and improved control across a range of materials including steel and aluminium.
The keyless chuck supports fast bit changes without additional tools, helping minimise downtime in busy workshop settings. Internally, a planetary gear train and double row ball bearings enhance durability and ensure dependable long-term operation.
Performance & Operating Requirements
Operating at 90 PSI, the 7802RAKC delivers a free speed of 2000 RPM, making it well suited to higher-speed drilling tasks. With efficient air consumption characteristics, it integrates easily into professional compressed air systems commonly used in UK workshops and industrial facilities.
Its balanced 1.32 kg design supports extended use while reducing strain, making it ideal for technicians requiring consistent performance across daily workloads.
Technical Specifications
| Model | 7802RAKC |
| Chuck Size | 3/8" (10 mm) |
| Maximum Free Speed | 2000 RPM |
| Rated Power | 0.5 HP (0.38 kW) |
| Air Pressure | 90 PSI |
| Air Consumption @ Load | 113 l/min |
| Average Air Consumption | 736 l/min |
| Stall Torque | 0.3 Nm (2.65 in-lb) |
| Total Length | 188 mm |
| Height | 152 mm |
| Height Over Spindle | 188 mm |
| Weight | 1.32 kg |
| Vibration Level | 2.8 m/s² |
| Sound Pressure | 82 dB |
Typical Applications
- High-speed drilling in steel and aluminium
- Automotive repair and bodywork
- Fabrication and engineering workshops
- Assembly line operations
- General industrial maintenance
