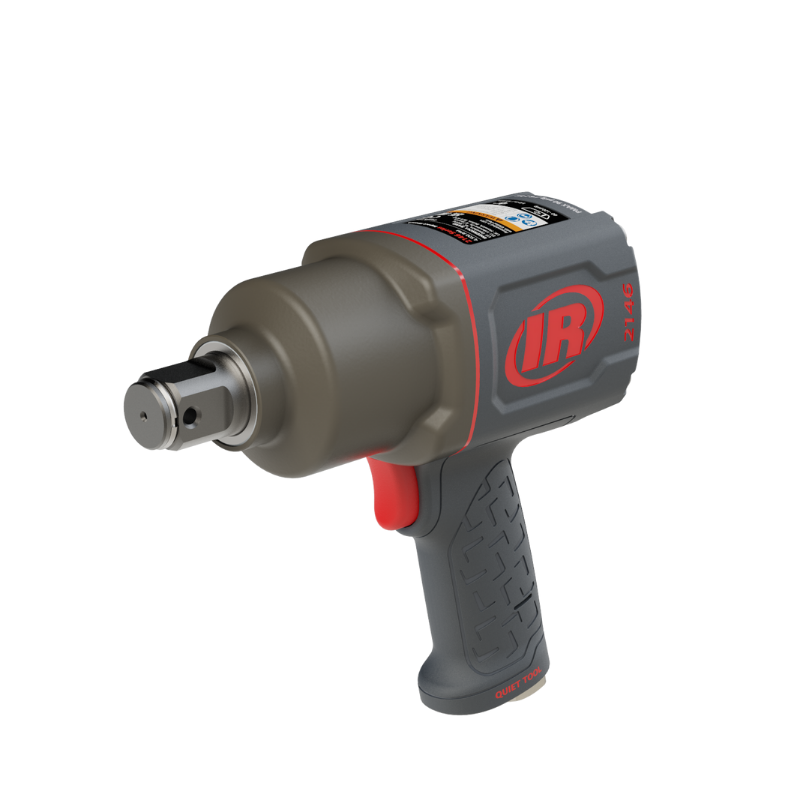

Ingersoll Rand 2146Q1MAX 3/4" High Torque Impact Wrench – 2305Nm
Ingersoll Rand 2146Q1MAX 3/4" High Torque Impact Wrench – 2305Nm
Couldn't load pickup availability
Key Features
- Maximum nut-busting torque of 2305 Nm for heavy industrial fastening
- Twin hammer impact mechanism for consistent high torque output
- 3/4" square drive for heavy-duty applications
- High performance with 7,000 RPM and 1,075 BPM
- Seven-vane motor and anodised end plate for durability and efficiency
- Ergonomic design with one-hand forward/reverse and feather-touch trigger
- Operates on standard 90 PSI compressed air systems
Product Overview
The Ingersoll Rand 2146Q1MAX 3/4" High Torque Impact Wrench is a professional-grade pneumatic tool designed for reliable performance in demanding industrial environments. Engineered for maximum torque output, it supports heavy-duty fastening and removal across a wide range of applications.
Manufactured with robust internal components and a durable external construction, this model delivers consistent results under continuous use. Its balanced design and reinforced build ensure long-term reliability in harsh working conditions.
Suitable for industrial professionals, the 2146Q1MAX integrates seamlessly into high-capacity compressed air systems and established maintenance operations.
Performance & Operating Information
Designed to operate within heavy-duty parameters, this impact wrench delivers up to 2305 Nm of nut-busting torque, 1830 Nm of reverse torque and 1491 Nm of forward torque. The twin hammer mechanism and seven-vane motor provide efficient power transfer and consistent performance under load.
Optimised air consumption and responsive controls ensure effective operation across demanding industrial applications.
Technical Specifications
| Model | 2146Q1MAX |
| Primary Capacity / Size | 3/4" Square Drive |
| Output Rating | 2305 Nm (Max) / 1830 Nm (Reverse) / 1491 Nm (Forward) / 7,000 RPM / 1,075 BPM |
| Operating Requirement | 90 PSI (6.2 Bar) Compressed Air |
| Construction | Industrial Housing with Anodised End Plate and Seven-Vane Motor |
| Dimensions | 216 mm (L) / 206 mm (H) |
| Weight | 4.22 kg |
| Additional Data | Air Consumption: 906 L/min (Load) / 241 L/min (Avg) / Sound: 94.3 dB(A) / Vibration: 8.1 m/s² |
Typical Applications
- Heavy machinery maintenance and repair
- Rail and transport infrastructure work
- Oil and gas industry applications
- Shipbuilding and construction environments
- Industrial MRO and high-torque fastening tasks
