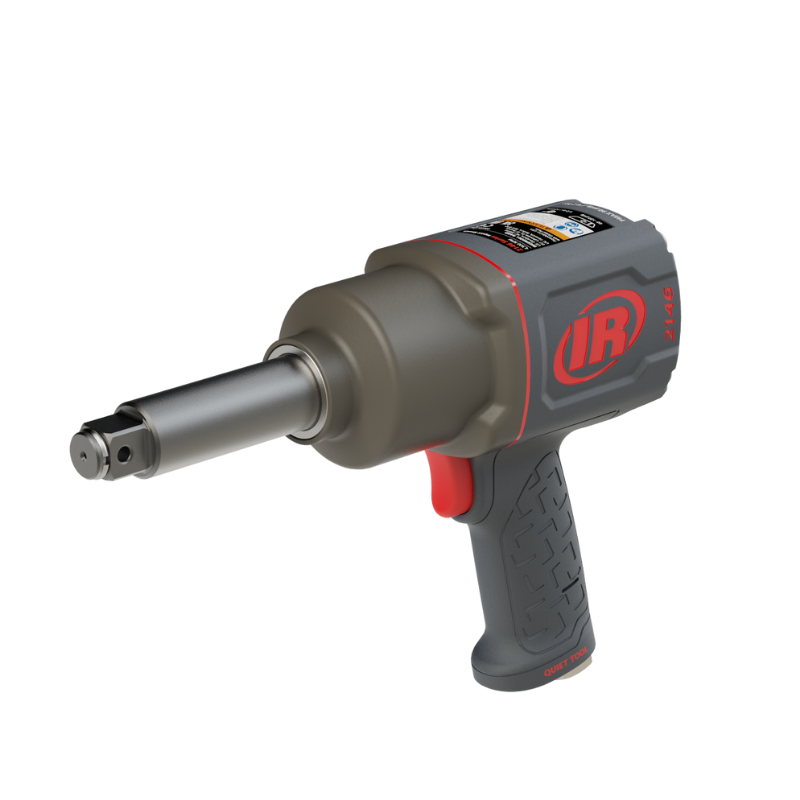

Ingersoll Rand 2146Q1MAX-3 3/4" Impact Wrench – 2712Nm Extended Anvil
Ingersoll Rand 2146Q1MAX-3 3/4" Impact Wrench – 2712Nm Extended Anvil
SKU:2146Q1MAX-3
- UK Stocked
- 30-Day Return
- 3-5 Day Shipping
Low stock
Couldn't load pickup availability
Key Features
- Maximum nut-busting torque of 2712 Nm (2000 ft-lb) for extreme-duty applications
- Cold-forged twin hammer impact mechanism for consistent high torque output
- 3/4" square drive with 3" extended anvil for improved access to recessed fasteners
- High performance with 5,500 RPM and 1,075 BPM
- Steel hammer case and anodised end plate for enhanced durability
- Ergonomic one-hand forward/reverse control with feather-touch trigger
- Operates on high-capacity compressed air systems
Product Overview
The Ingersoll Rand 2146Q1MAX-3 3/4" Impact Wrench with Extended Anvil is a professional-grade pneumatic tool designed for reliable performance in demanding industrial environments. Engineered for maximum torque and extended reach, it is ideal for accessing recessed fasteners in heavy-duty applications.
Manufactured with robust internal components including a cold-forged twin hammer mechanism and durable external construction, this model delivers consistent results under continuous use. Its reinforced build and balanced design promote controlled handling and long-term reliability.
Suitable for industrial professionals, the 2146Q1MAX-3 integrates seamlessly into high-capacity compressed air systems and established maintenance operations.
Performance & Operating Information
Designed to operate within heavy-duty parameters, this impact wrench delivers up to 2712 Nm of nut-busting torque, 1966 Nm of reverse torque and 1763 Nm of forward torque. The twin hammer mechanism and high-efficiency motor provide consistent power transfer and reliable performance under load.
Integrated Quiet Technology reduces operating noise, while the adjustable power control system enables precise torque management across different applications.
Technical Specifications
| Model | 2146Q1MAX-3 |
| Primary Capacity / Size | 3/4" Square Drive (3" Extended Anvil) |
| Output Rating | 2712 Nm (Max) / 1966 Nm (Reverse) / 1763 Nm (Forward) / 5,500 RPM / 1,075 BPM |
| Operating Requirement | Compressed Air System (3/8" Inlet, 1/2" Hose Recommended) |
| Construction | Steel Hammer Case with Anodised End Plate |
| Dimensions | 11.5" (L) / 8.2" (H) / 3.5" (W) |
| Weight | 8.8 lb (Approx. 4.0 kg) |
| Additional Data | Air Consumption: 36 CFM (Load) / 14 CFM (Avg) / Sound: 94.3 dB(A) / Vibration: 8.4 m/s² |
Typical Applications
- Heavy machinery maintenance and repair
- Rail and transport infrastructure work
- Oil and gas industry applications
- Shipbuilding and construction environments
- Industrial MRO and recessed fastener removal
