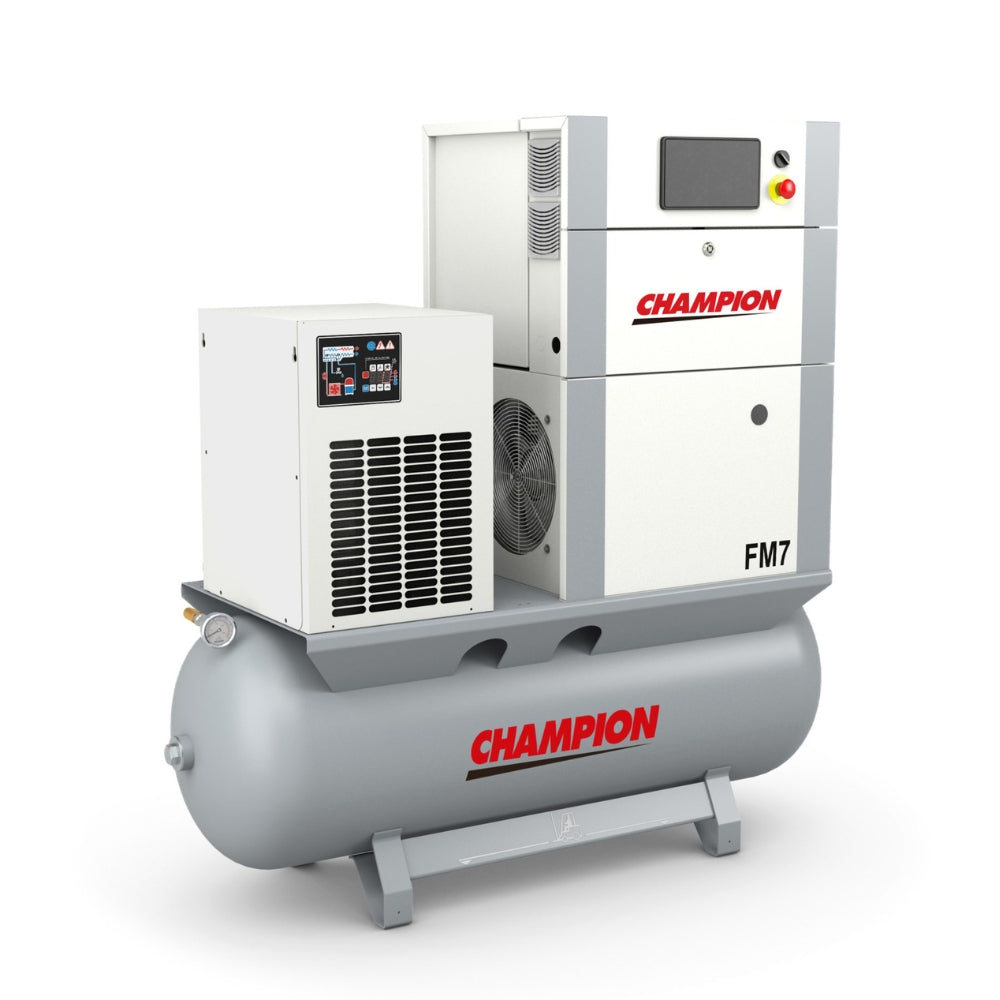

Champion FM7/CT/270 Compressor

A high-performance and compact air compressor solution, the Champion FM7/CT/270 delivers up to 0.99 m³/min at 8 bar pressure, powered by a 7.5 kW motor. This fully integrated unit combines a refrigerated dryer and 270 L receiver tank, providing a complete and efficient compressed air system.

Key Features:

• Powerful Performance: Delivers high airflow suitable for light industrial and demanding workshop applications.
• Quiet Operation: Operates at approximately 70 dB(A), enabling use near workspaces.
• Advanced Control: Equipped with C-PRO 2.0 controller for monitoring and reliable system protection.
• Compact & Durable: Space-saving design with a footprint of 1.12 m² and a high-quality air-end for long-lasting performance.
• Easy Maintenance: Quick-access panels and simplified servicing reduce downtime.
• Efficient Cooling: Designed to operate in ambient temperatures up to 46°C with optimal cooling and low outlet air temperatures.

Technical Specifications:

• Model: FM7/CT/270
• Product Code: RSCCP0727V4
• Power: 7.5 kW (10 hp)
• Voltage: 400V / 50 Hz
• FAD: 0.97 m³/min (34.26 CFM)
• Max Pressure: 10 bar (145 psi)
• Tank Size: 270 L
• Drive Type: Belt
• Controller: C-Pro 2.0
• Cooling: Air cooled
• Dryer: Integrated refrigerated dryer
• Noise Level: 70 dB(A)
• Port Size: 3/4"
• Dimensions (L × W × H): 1600 × 700 × 1600 mm
• Weight : 340kg
