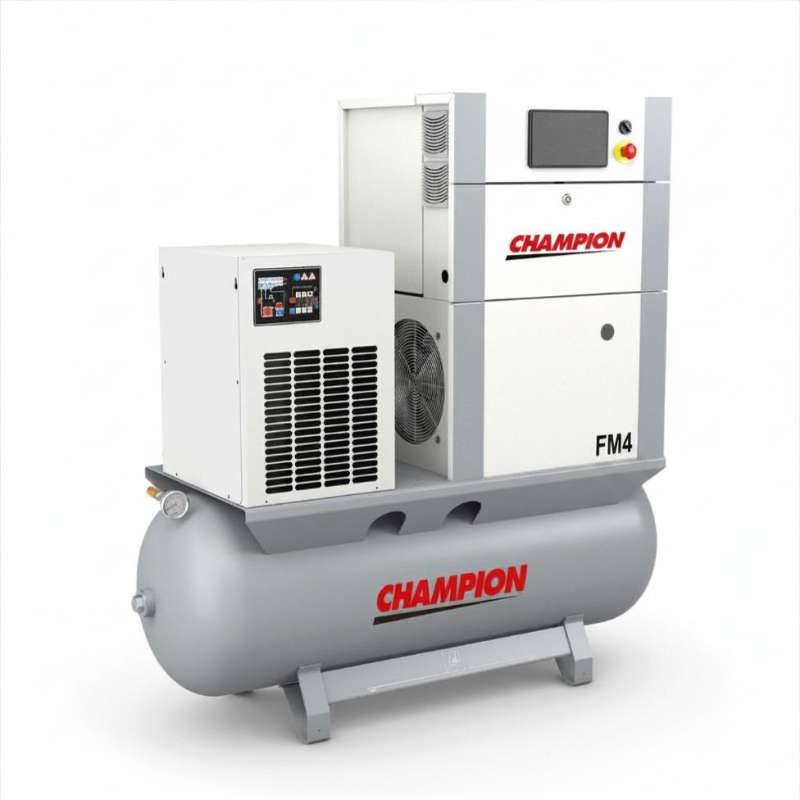

Champion FM4/CT/270 Compressor

A robust and efficient compressed air solution, the Champion FM4/CT/270 delivers up to 0.45 m³/min at 10 bar pressure, powered by a 4 kW motor. Featuring a fully integrated refrigerated dryer and 270 L receiver tank, it provides a compact, space-saving, and ready-to-install package.

Key Features:

• Low Noise Operation: Runs at around 67 dB(A), ensuring a quieter working environment.
• Consistent Airflow: Designed for continuous duty with stable pressure and reliable performance.
• High-Efficiency Design: Optimized air-end and components reduce energy consumption.
• Service-Friendly Layout: Removable panels and simplified construction make maintenance quick and easy.
• Integrated Dryer System: CT package includes a responsive refrigeration dryer for energy savings and stable air quality.

Technical Specifications:

• Model: FM4/CT/270
• Product Code: RSCCP020633 / RSCCP020635
• Power: 4 kW (5.5 hp)
• Voltage: 380–400V (50/60 Hz)
• FAD: 0.45 m³/min (15.89 CFM)
• Max Pressure: 10 bar (145 psi)
• Tank Size: 270 L
• Drive Type: Belt
• Controller: C-Pro 1.0+
• Noise Level: 67 dB(A)
• Dimensions: 1539 × 720 × 1604 mm
• Weight: 270 kg
