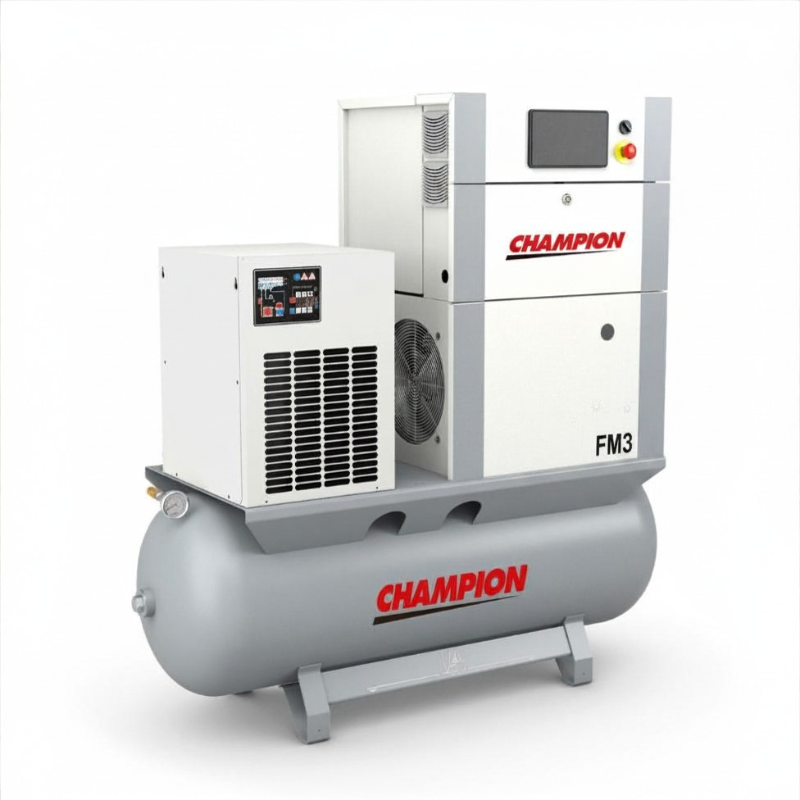

Champion FM3/CT/270 Compressor

A powerful and dependable air compressor, the Champion FM3/CT/270 delivers up to 0.35 m³/min at 10 bar pressure, driven by a 3 kW motor. Its all-in-one design combines a refrigerated dryer and 270 L receiver tank, offering a compact and installation-ready solution.

Key Features:

• Quiet Performance: Operates at approximately 64 dB(A), suitable for workshop environments.
• Reliable Air Delivery: Precision screw technology ensures smooth, continuous airflow with minimal pulsation.
• Integrated Filtration System: Advanced air-oil separation provides clean air with low residual oil content.
• Low Maintenance Design: Easy-access service points and reduced component count minimize downtime.
• Smart Drying Technology: Energy-efficient refrigeration dryer adjusts operation to match air demand.

Technical Specifications:

• Model: FM3/CT/270
• Product Code: RSCCP020632
• Power: 3 kW (4 hp)
• Voltage: 380–400V (50/60 Hz)
• FAD: 0.35 m³/min (12.36 CFM)
• Max Pressure: 10 bar (145 psi)
• Tank Size: 270 L
• Drive Type: Belt
• Controller: C-Pro 1.0+
• Noise Level: 64 dB(A)
• Dimensions: 1539 × 720 × 1604 mm
• Weight: 261 kg
