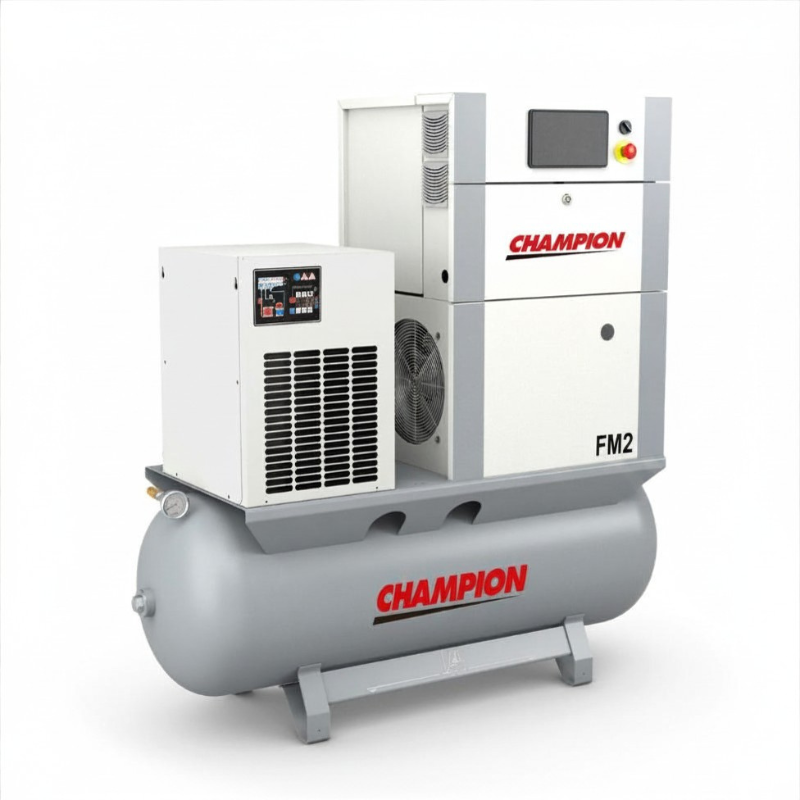

Champion FM2/CT/270 Compressor

A compact, efficient, and reliable air compressor solution, the Champion FM2/CT/270 delivers up to 0.21 m³/min at 10 bar pressure, powered by a 2.2 kW motor. Designed as a complete turnkey unit, it integrates a refrigerated dryer and 270 L receiver tank, making installation simple and space-saving.

Key Features:

• Ultra-Quiet Operation: Runs at just 63 dB(A), allowing installation close to work areas without disruption.
• Efficient Performance: Start/stop control reduces energy consumption while maintaining consistent air supply.
• Integrated Air System: Built-in air-oil separation block ensures high reliability and low residual oil levels (max. 3 ppm).
• Easy Maintenance: Removable panels and simplified internal layout reduce servicing time and costs.
• Energy-Saving Dryer: CT package includes a smart refrigeration dryer that adapts to demand for optimal efficiency and dew point stability.

Technical Specifications:

• Model: FM2/CT/270
• Product Code: RSCCP020630
• Power: 2.2 kW (3 hp)
• Voltage: 230V (50 Hz)
• FAD: 0.18 m³/min (6.36 CFM)
• Max Pressure: 10 bar (145 psi)
• Tank Size: 270 L
• Drive Type: Belt
• Controller: C-Pro 1.0+
• Noise Level: 63 dB(A)
• Dimensions: 1539 × 720 × 1604 mm
• Weight: 261 kg
